*Bike will be delivered box packed by us; assembly has to be done by customer

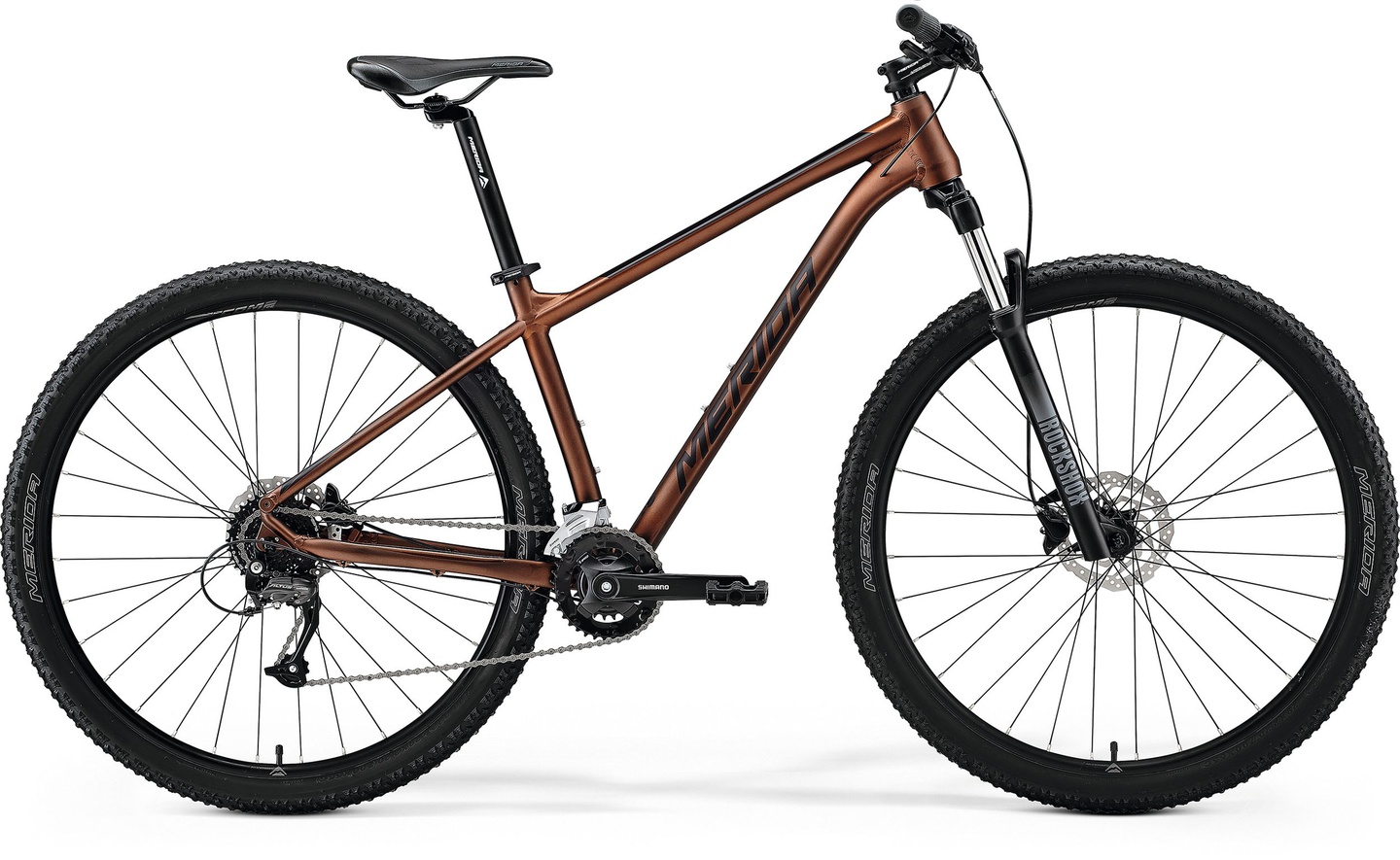

RockShox equipped aluminium 29er hardtail featuring our more comfort-focus geometry, triple chainset drivetrain and reliable hydraulic disc brakes. The perfect bike for off-road and urban jungle adventures.
With 27 gears provided by its triple chainset 9-speed setup, our BIG.NINE 60 always has the right gear for you. Pair that with our double butted aluminium frame and its more comfort-focused geometry, and you get the perfect hardtail for long off-road outings and fast blasts through the urban jungle. A 100 mm suspension fork from RockShox and hydraulic disc brakes improve comfort and control even further
.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The carbon and LITE framed BIG.NINE, with its racing geometry, is an ideal companion on XC and marathon race tracks whilst the more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
SPECIFICATIONS
Frame
"BIG.NINE TFS III; MAT aluminum; 29 Max. Wheelsize; 135x9 axle standard; BSA bottom bracket standard"
Fork
Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 46mm fork offset
Front Brake
Shimano ST-EF505; BR-MT200 brake caliper
Rear Brake
Shimano ST-EF505; BR-MT200 brake caliper
Front Rotor
Shimano RT10; 160 mm
Rear Rotor
Shimano RT10; 160 mm
Chain
KMC M99
Chainwheel
Shimano MT101; 40-30-22 teeth
Crank/Size
170 mm-S, 175 mm-M/XXL
BB Set
Shimano BB-UN100
DERA-F
Shimano FD-M2000
DERA-R
Shimano RD-M370
Freewheel
Shimano CS-HG200; 11-32 teeth; 9 speed
Pedal
VP VPE-891
Grip
MERIDA EC
Handle bar
MERIDA CC; MAT aluminium; 690mm width; 15mm rise
Handle bar Stem
MERIDA CC; MAT aluminium; 31.8mm diameter; 6° stem angle; 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Head Set
MERIDA M2345
spacer
10mm*2
Front Hub
Shimano TX505; 100x9mm width front hub; 32 spoke holes; Centerlock
Rear Hub
Shimano TX505; 135x9mm width rear hub; 32 spoke holes; Centerlock
Rim
MERIDA CC; 17mm inner width; MAT aluminium
Saddle
MERIDA Sport comfort
Seat Clamp
MERIDA COMP QR
Seat Post
MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB
Front Shifter
Shimano ST-EF505
Rear Shifter
Shimano ST-EF505
Spoke
Black steel
Inner Tube
29*2.2 A.V
Tire (F&R)
MERIDA K1080; 29x2.2"; wire
Hardware
Dacromet steel
Bell
YWS-Alloy
