*Bike will be delivered box packed by us; assembly has to be done by customer
Our start into the world of 27.5" hardtails. The larger wheels combined with the 100 mm suspension fork offer additional comfort and control, and the chosen components help tackle your next off-road adventure.

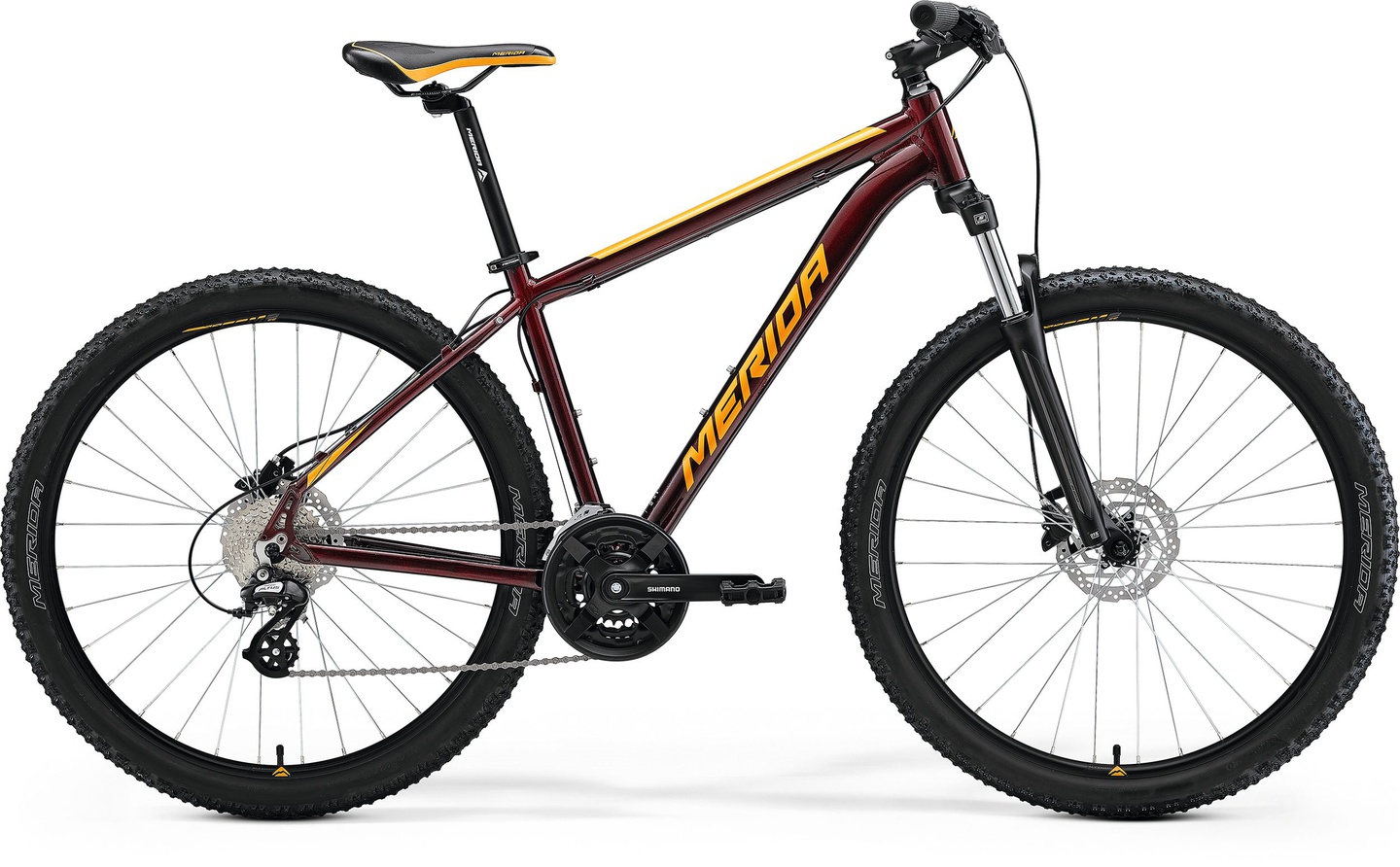

Entry-level 27.5" wheeled hardtail built around our double butted aluminium frame with a more comfort inspired geometry. The 27.5" wheels help to cover ground efficiently and in perfect control and impress with easy acceleration and nimble riding characteristics. The SR Suntour fork helps to improve the comfort even further, and the broad gear range of the triple chainring Shimano drivetrain let you conquer even the steepest hills with ease.
The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5"" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. They symbolise the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
SPECIFICATIONS
Frame
BIG.SEVEN SPEED; MAT aluminium; 27.5 Max. Wheelsize; 135x9 axle standard; BSA bottom bracket standard
Fork
Suntour XCT30; Coil; 100mm suspension travel
Front Brake
Shimano ST-EF505; BR-MT200 brake caliper
Rear Brake
Shimano ST-EF505; BR-MT200 brake caliper
Front Rotor
Shimano RT10; 160 mm
Rear Rotor
Shimano RT10; 160 mm
Chain
Sunrace M84
Chainwheel
Shimano TY301; 42-34-24 teeth
Crank/Size
170 mm-S, 175 mm-M/XXL
BB Set
FSA TH-7420ST-W, Cartridge Bearing
DERA-F
Shimano FD-TY700
DERA-R
Shimano RD-M310
Freewheel
Sunrace CSM558AU; 11-32 teeth; 8 speed; black
Pedal
VP VPE-891
Grip
MERIDA EC
Handle bar
MERIDA CC; MAT aluminium; 690mm width; 15mm rise
Handle bar Stem
MERIDA CC; MAT aluminium; 31.8mm diameter; 6° stem angle; 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Head Set
FSA NO.10
spacer
10mm*2
Front Hub
Shimano TX505; 100x9mm width front hub; 32 spoke holes; Centerlock
Rear Hub
Shimano TX505; 135x9mm width rear hub; 32 spoke holes; Centerlock
Rim
MERIDA CC; 17mm inner width; MAT aluminium
Saddle
MERIDA Sport comfort
Seat Clamp
MERIDA COMP QR
Seat Post
MERIDA CC; MAT aluminium; 30.9mm diameter; 15mm setback
Front Shifter
Shimano ST-EF505
Rear Shifter
Shimano ST-EF505
Spoke
Steel UCP
Inner Tube
29*2.2 A.V
Tire (F&R)
MERIDA K1080; 27.5x2.2"; wire
Hardware
Dacromet steel
Bell
YWS-Alloy
