*Bike will be delivered box packed by us; assembly has to be done by customer

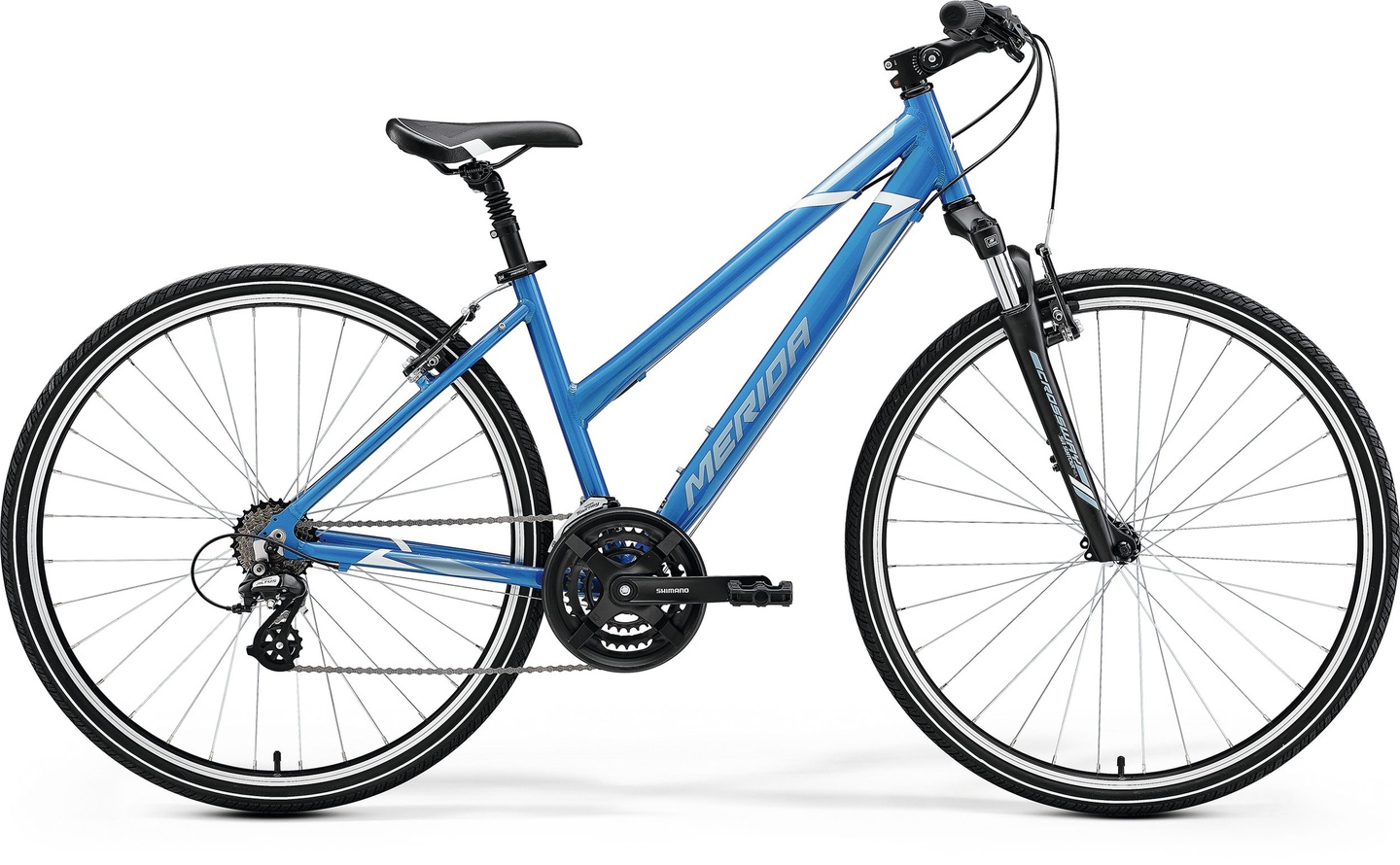

Entry level trekking/hybrid bike equipped with reliable V-brakes and suspension forks at an attractive price point. Your reliable companion around town and cross country.
You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10-V comes with powerful and easy to service V-brakes, a broad gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork and seat post provide extra comfort and riding safety.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
SPECIFICATIONS
Frame
CROSSWAY DT; MAT aluminium; 700C Max. Wheelsize; 135x9 axle standard; BSA bottom bracket standard
Fork
Suntour NEX; Coil; 63mm suspension travel
Front Brake
Promax MTV-117A
Rear Brake
Promax MTV-117A
Front Rotor
0
Rear Rotor
0
Chain
KMC NS8
Chainwheel
Shimano TY301; 48-38-28 teeth
Crank/Size
170 mm-XXS/SM, 175 mm-ML/XXL
BB Set
FSA TH-7420ST-W, Cartridge Bearing
DERA-F
Shimano FD-TY510
DERA-R
Shimano RD-M310
Freewheel
Shimano MF-TZ500; 14-28 teeth; 7 speed
Pedal
VP VPE-891
Grip
MERIDA EC
Handle bar
MERIDA CC; MAT steel; 620mm width; 30mm rise
Handle bar Stem
MERIDA TK; MAT aluminium; 25.4mm diameter; adjustable; 100mm
Head Set
FSA TH888
spacer
5mm*1
Front Hub
Joytech JY-751DSE; 100x9mm width front hub; 32 spoke holes
Rear Hub
Joytech JY-752DSE; 135x9mm width rear hub; 32 spoke holes
Rim
MERIDA CC; 17mm inner width; MAT aluminium
Saddle
MERIDA Cross Sport
Seat Clamp
MERIDA COMP QR
Seat Post
MERIDA TK; 27.2mm diameter; 13mm setback; 40mm seatpost suspension travel
Front Shifter
Shimano ST-EF500
Rear Shifter
Shimano ST-EF500
Spoke
Steel UCP
Inner Tube
700*35/43 A.V
Tire (F&R)
MERIDA K1171; 700x40C; wire
Hardware
Dacromet steel
Bell
YWS-Alloy
